Rod Sources

GE-Cubuk-Kaynak-Takimi

ERS rod sources are calibrated by direct comparison of standardized solutions traceable to the National Institute of Standards and Technology (NIST), in an identical geometry, using a pressurized ion chamber with ±%5 accuracy.

Source dimensions are 12.7 mm x 127 mm (0.5” x 5”) / 12.7 mm x 74.9mm (0.5”x 2.95”).

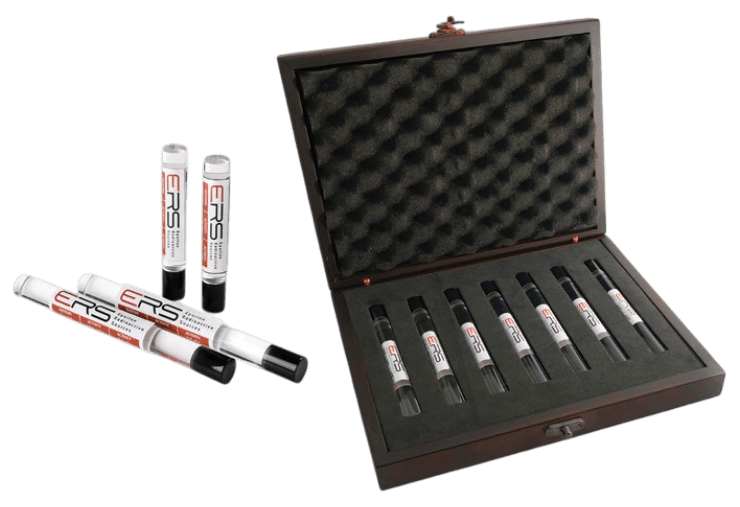

ERS rod sources can be supplied in set or individually in accordance with customer request.

ERS offers a wide range of rod sources that are used for calibrating well counters and thyroid uptake systems. Rod sources are constructed of acrylic material and have a flat base which allows easy positioning in the vertical position required for consistent accuracy of the calibration process.

Product Code  Product Type  Isotope  Activity Dimensions (Diameter x Length)
SI NON SI mm inches
KSR8230-0,1u Rod  Source Co-57 3.7 kBq 0.1 uCi  12.7mm x 127 mm 0.5″ x 5″
KSR8230-1u Rod  Source Co-57 37 kBq 1 uCİ 12.7mm x 127 mm 0.5″ x 5″
KSR8430-0,1u Rod  Source Cs-137 3.7 kBq 0.1 uCi 12.7mm x 127 mm 0.5″ x 5″
KSR8430-0,5u Rod  Source Cs-137 18.5  kBq 0.5 uCi  12.7mm x 127 mm 0.5″ x 5″
KSR8430-1u Rod  Source Cs-137 37 kBq 1 uCi 12.7mm x 127 mm 0.5″ x 5″
KSR8330-0,1u Rod  Source Ba-133 3.7 kBq 0.1 uCi 12.7mm x 127 mm 0.5″ x 5″
KSR8330-1u Rod  Source Ba-133 37 kBq 1 uCİ 12.7mm x 127 mm 0.5″ x 5″
KSR8530-0,1u Rod  Source Co-60 3.7 kBq 0.1 uCi 12.7mm x 127 mm 0.5″ x 5″
KSR8530-1u Rod  Source Co-60 37 kBq 1 uCİ 12.7mm x 127 mm 0.5″ x 5″
KSR8630-0,1u Rod  Source Mn-54 3.7 kBq 0.1 uCi 12.7mm x 127 mm 0.5″ x 5″
KSR8630-1u Rod  Source Mn-54 37 kBq 1 uCİ 12.7mm x 127 mm 0.5″ x 5″
KSR8130-0,1u Rod  Source Na-22 3.7 kBq 0.1 uCi 12.7mm x 127 mm 0.5″ x 5″
KSR8130-1u Rod  Source Na-22 37 kBq 1 12.7mm x 127 mm 0.5″ x 5″
KSR8730-0,1u Rod  Source Cd-109 3.7 kBq 0.1 uCi 12.7mm x 127 mm 0.5″ x 5″
KSR8730-1u Rod  Source Cd-109 37 kBq 1 uCİ 12.7mm x 127 mm 0.5″ x 5″
KSR8830-0,1u Rod  Source Eu-152 3.7 kBq 0.1 uCi 12.7mm x 127 mm 0.5″ x 5″
KSR8830-0,5u Rod  Source Eu-152 18.5 kBq 0.5 uCi 12.7mm x 127 mm 0.5″ x 5″
KSR8830-1u Rod  Source Eu-152 37 kBq 1 uCİ 12.7mm x 127 mm 0.5″ x 5″
KSR8240-0,1u Rod  Source Co-57 3.7 kBq 0.1 uCi 12.7mm x 74.9 mm 0.5″ x 2.95″
KSR8240-1u Rod  Source Co-57 37 kBq 1 uCİ 12.7mm x 74.9 mm 0.5″ x 2.95″
KSR8440-0,1u Rod  Source Cs-137 3.7 kBq 0.1 uCi 12.7mm x 74.9 mm 0.5″ x 2.95″
KSR8440-1u Rod  Source Cs-137 37 kBq 1 uCİ 12.7mm x 74.9 mm 0.5″ x 2.95″
KSR8340-0,1u Rod  Source Ba-133 3.7 kBq 0.1 uCi 12.7mm x 74.9 mm 0.5″ x 2.95″
KSR8340-1u Rod  Source Ba-133 37 kBq 1 uCİ 12.7mm x 74.9 mm 0.5″ x 2.95″
KSR8540-0,1u Rod  Source Co-60 3.7 kBq 0.1 uCi 12.7mm x 74.9 mm 0.5″ x 2.95″
KSR8540-1u Rod  Source Co-60 37 kBq 1 uCİ 12.7mm x 74.9 mm 0.5″ x 2.95″
KSR8640-0,1u Rod  Source Mn-54 3.7 kBq 0.1 uCi 12.7mm x 74.9 mm 0.5″ x 2.95″
KSR8640-1u Rod  Source Mn-54 37 kBq 1 uCİ 12.7mm x 74.9 mm 0.5″ x 2.95″
KSR8140-0,1u Rod  Source Na-22 3,7 kBq 0.1 uCi 12.7mm x 74.9 mm 0.5″ x 2.95″
KSR8140-1u Rod  Source Na-22 37 kBq 1 uCİ 12.7mm x 74.9 mm 0.5″ x 2.95″
KSR8740-0,1u Rod  Source Cd-109 3.7 kBq 0.1 uCi 12.7mm x 74.9 mm 0.5″ x 2.95″
KSR8740-1u Rod  Source Cd-109 37 kBq 1 uCİ 12.7mm x 74.9 mm 0.5″ x 2.95″
KSR8840-0,1u Rod  Source Eu-152 3.7 kBq 0.1 uCi 12.7mm x 74.9 mm 0.5″ x 2.95″
KSR8840-1u Rod  Source Eu-152 37 kBq 1 uCİ 12.7mm x 74.9 mm 0.5″ x 2.95″
